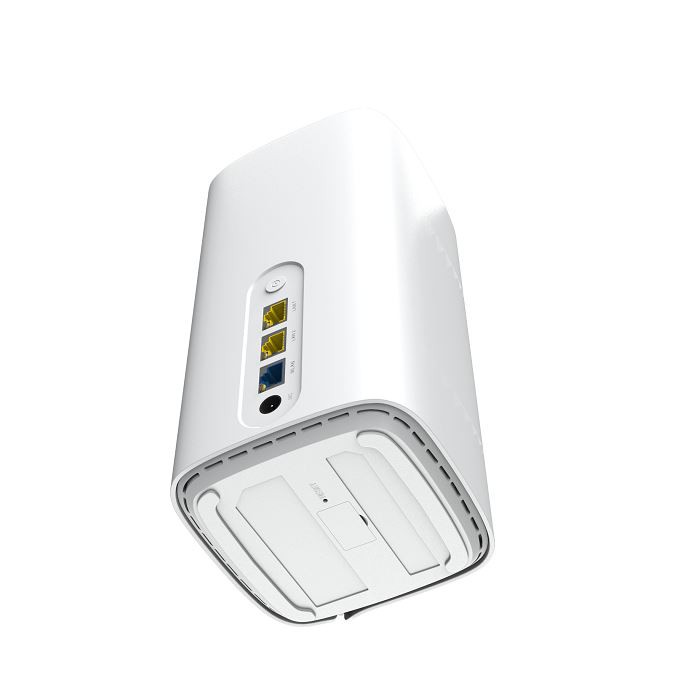

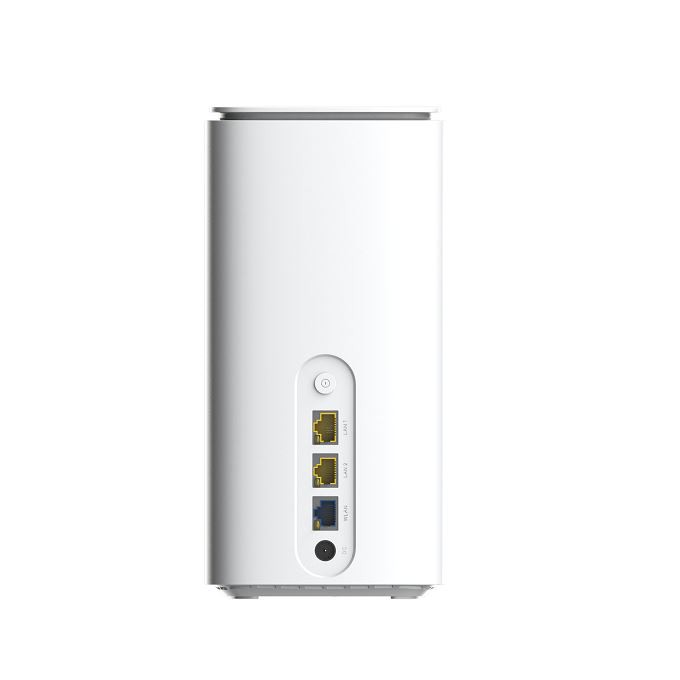

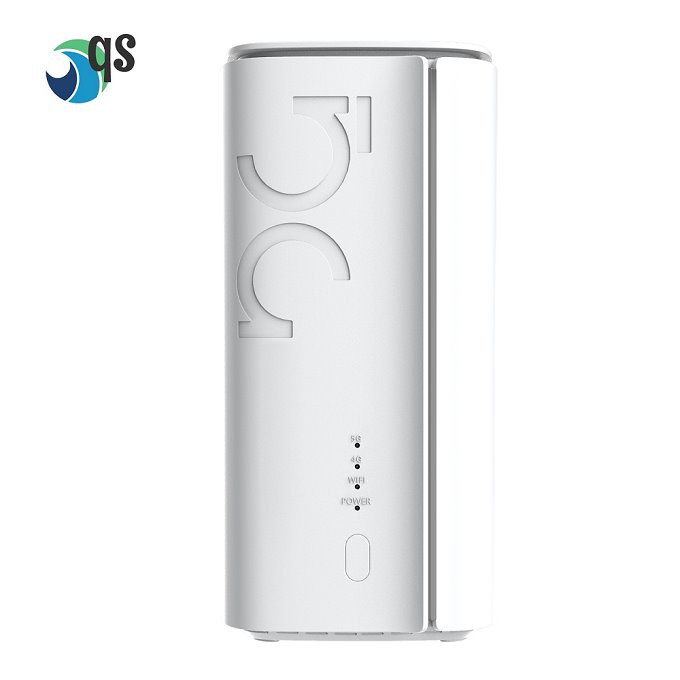

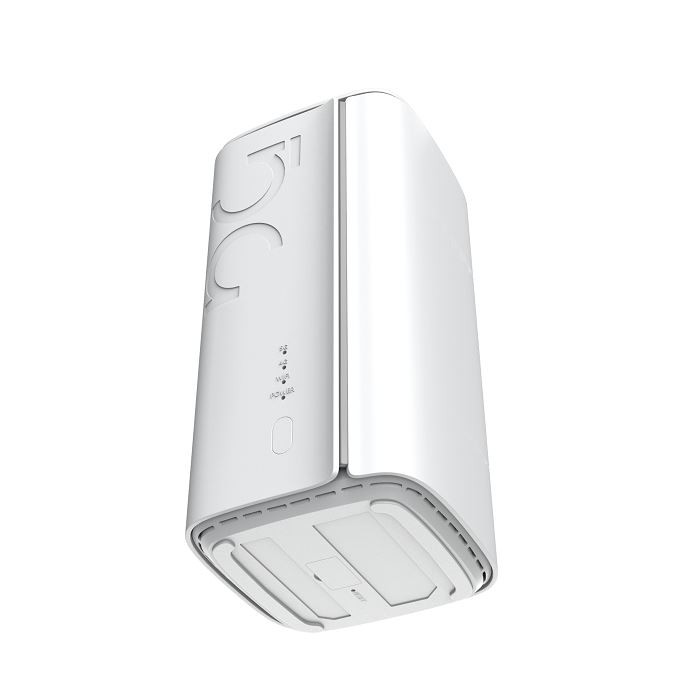

5G & WiFi-6 Smart Router System CPE
M01 5G CPE
1 Pwodwi Apèsi sou lekòl la
5G ak WiFi-6 Sistèm Routeur Entelijan (CPE), se ki baze sou mak-nouvo platfòm embed, li ka satisfè ak k ap grandi-up mobilkoneksyonkondisyon epi li bay vitès la vit pi lwen pase imajinasyon ou.
CPE a konpatib ak NSA/SA doub-mòd, kostim nan tout kalite rezo nan tout mond lan, sa vle di ou jis ploge epi jwe li epi jwi koneksyon ultra-rapid bande nan nenpòt kote.
CPE a pote nouvo fason pou pèmèt ou fè eksperyans VR/AR/4K/8K difizyon lib e fasil. Avèk teknoloji 802.11ax (Wi-Fi 6) entegre, sèl CPE a gen pi laj pwoteksyon san fil ak plis Pleasant. Pandan se tan CPE a pote pi wo sekirite, pi bon efikasite rezo ak pi long lavi batri.
Karakteristik kle
5G Selilè
Modèm Qualcomm™ SDX55 entegre, li gen pi bon pèfòmans rezo mobil 5G epi li travay avèk milti-mòd 5G a 2G entegre atravè lemond.
Wi-Fi 6 (802.11ax)
Teknoloji Wi-Fi revolisyonè ak OFDMA ak DL MU-MUMI, pi vit liy san fil, plis koneksyon kliyan, pi ba latansi, pi bon efikasite rezo.
Pi wo Kapasite Wireless
Doub-bann 4 kouran espasyal, CPE a bay 1800Mbps Pleasant san fil (600 plis 1200), fè ou lapè nan mwen pandan w ap jwi videyo UHD, jwèt sou entènèt nan èdtan yo lakay ou. Li se envestisman an prèv lavni absoliman.
Hybrid MESH plis Rezo
CPE a eritye teknoloji may epi li sipòte rezo ibrid "filable / san fil". Li tèlman pratik pou kouvri tout kwen ak zòn mouri lè w ajoute yon lòt MESH plis ne (yon lòt seri routeur). li amelyore deplwaman rezo san fil ak optimize karakteristik nan san pwoblèm.
5G Fich done
5G Selilè
1) 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF Sistèm
2) Mòd rezo 5G: SA (otonòm), NSA (ki pa otonòm)
3) 5G NSA Gwoup Mizik: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
4) 5G SA Gwoup Mizik: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
5) Estanda 5G: 3GPP Release 15
6) Vitès transmisyon 5G SA: 2.1Gbps/900Mbps (jiska ISP)
7) Vitès transmisyon 5G NSA: 2.5Gbps/650Mbps (jiska ISP)
4G Fich done
n 4G Selilè
8) Kategori LTE: Desann Cat 16/ MOUTE Cat 18
9) LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
10) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
11) LTE desann 4 × 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
12) WCDMA: B1/B2/B3/B4/B5/B8/B19
13) LTE: desann 1.0 Gbps;UP 200 Mbps
Fich done WiFi6
WiFi 6（802.11ax）
1) Radyo k ap travay: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
2) Teknoloji kodaj:1024-QAM / OFDMA
3) Peak Connections:>100 plis kliyan
4) Konfòmite estanda Wi-Fi: WiFi6 ak 802.11ac / 802.11n bak
5) antèn: bati-an 4 pcs antèn pèfòmans segondè ak 4 pcs ekstèn konpozan FEM.
Done Chanje
1) Koneksyon mobil 4G/5G (sipò APN)
2) Giga Ethernet Koneksyon
3) MESH: MESH plis hybird
4) 2.4G/5Ghz WiFi
5) pare-feu avanse
6) Filtre MAC
7) WiFi Security
8) VPN Passthrough ak VPN Kliyan (L2TP PPTP)
9) IPV4/IPV6
10) Jesyon WEB / APP
11) Mizajou mikrolojisyèl
Espesifikasyon pyès ki nan konpitè
Materyèl Spesifikasyon
1) CPU: MT7621AT
2) memwa: 16MB Flash plis 256MB DDR3
3) Ethernet: 1 * 1 Gbps WAN, 2 * LAN 1 Gbps
4) 1 * plas SIM (Nano-SIM)
5) bouton Reyajiste
6) MESH plis bouton
7) MESH plis ki ap dirije switch
8) Endikatè ki ap dirije
- MESH plis Estati Travay (limyè pou respire)
- 4G Estati
- 5G Estati
– Estati WiFi
– Estati pouvwa
9) Jeneral
- Konsomasyon pouvwa:<20W
- DC Power Supply: 12V / 2A
– Tanperati travay: 0 degre -40 degre, Tanperati depo: -20 degre - plis 70 degre
– Imidite: 5 pousan -95 pousan
- Dimansyon: 108X108X216MM
– Pwa: TBD
2 Teknik Espesifikasyon
Modèl | M01K21 |
CPU | MT7621AT plis SDX55 |
Flash | 16MB |
RAM | 2Gb |
Wi-Frekans | 2.4G&5G |
Estanda WiFi | 2.4G:802.11b/g/n/ax 2T2R MIMO, 5.8GHz:802.11a/n/ac/ax 2T2R MIMO |
WiFi | 2.4GHz:600Mbps,5GHz:1200Mbps |
5G estanda | 3GPP Release 15 NSA/SA operasyon, Sub-6 GHz |
Mòd rezo 5G | NSA/SA |
Pousantaj done 5G/4G | Vitès transmisyon 5G SA: 2.1Gbps/900Mbps (jiska ISP) 5G NSA Vitès transmisyon:2.5Gbps/650Mbps (jiska ISP) LTE: desann 1.0 Gbps;UP 200 Mbps |
Gwoup Frekans 5G | 5G NR NSA n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 5G NR SA n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 MIMO Downlink: 4 × 4 MIMO sou n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 Uplink: 2 × 2 MIMO sou n41 |
Kategori LTE | |
Downlink chat 16/ Lyen monte chat 18 | |
LTE-FDD | |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 | |
LTE-TDD | |
Gwoup Frekans 4G & 3G | B34/B38/B39/B40/B41/B42/B43/B48 LAA B46（Sipòte 2 × 2 MIMO） |
Downlink4 × 4 MIMO | |
B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 | |
WCDMA | |
B1/B2/B3/B4/B5/B6/B8/B19 | |
Modulation Mode | 5G:GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAMWIFI: 1024-QAM / OFDMA |
WiFi Resevwa sansiblite | 2 . 4 G: 11 X HE 20 : - 70 d Bm@ MCS 11 , - 80 d Bm@ MCS 0 . 11 X HE 40 : - 70 d Bm@ MCS 11 , - 80 d Bm@ MCS 0 . 11 n HT 20 : - 70 d Bm@ MCS 7 , - 80 d Bm@ MCS 0 . 11 n HT 40 : - 70 d Bm@ MCS 7 , - 78 d Bm@ MCS 0 . 11 g: - 68 d Bm@ 54 Mbps, - 82 d Bm@ 6 Mbps. 11 b: - 70 d Bm@ 11 Mbps, - 85 d Bm@ 1 Mbps.
5 . 8 G: 11 a: - 72 d Bm@ 54 Mbps, - 85 d Bm@ 6 Mbps. 11 n HT 20 : - 75 d Bm@ MCS 7 , - 85 d Bm@ MCS 0 . 11 n HT 40 : - 75 d Bm@ MCS 7 , - 88 d Bm@ MCS 0 11 ac HT 80 : - 65 d Bm@ MCS 9 11 a X HT 80 : - 65 d Bm@ MCS 11 |
EVM | 802 . 11 n@ MCS 7 : Mwens pase oswa egal a - 30 dB 802 . 11 g@ 54 M: Mwens pase oswa egal a - 30 dB 802 . 11 b@ 11 M: Mwens pase oswa egal a - 15 dB 802 . 11 a@ 54 M: Mwens pase oswa egal a - 28 dB 802 . 11 ac @ MCS 9 : Mwens pase oswa egal a - 33 dB 802 . 11 a X @ MCS 11 : Mwens oswa egal a - 33 dB |
Devyasyon frekans | ± 20ppm |
Dimansyon | 108X108X216MM |

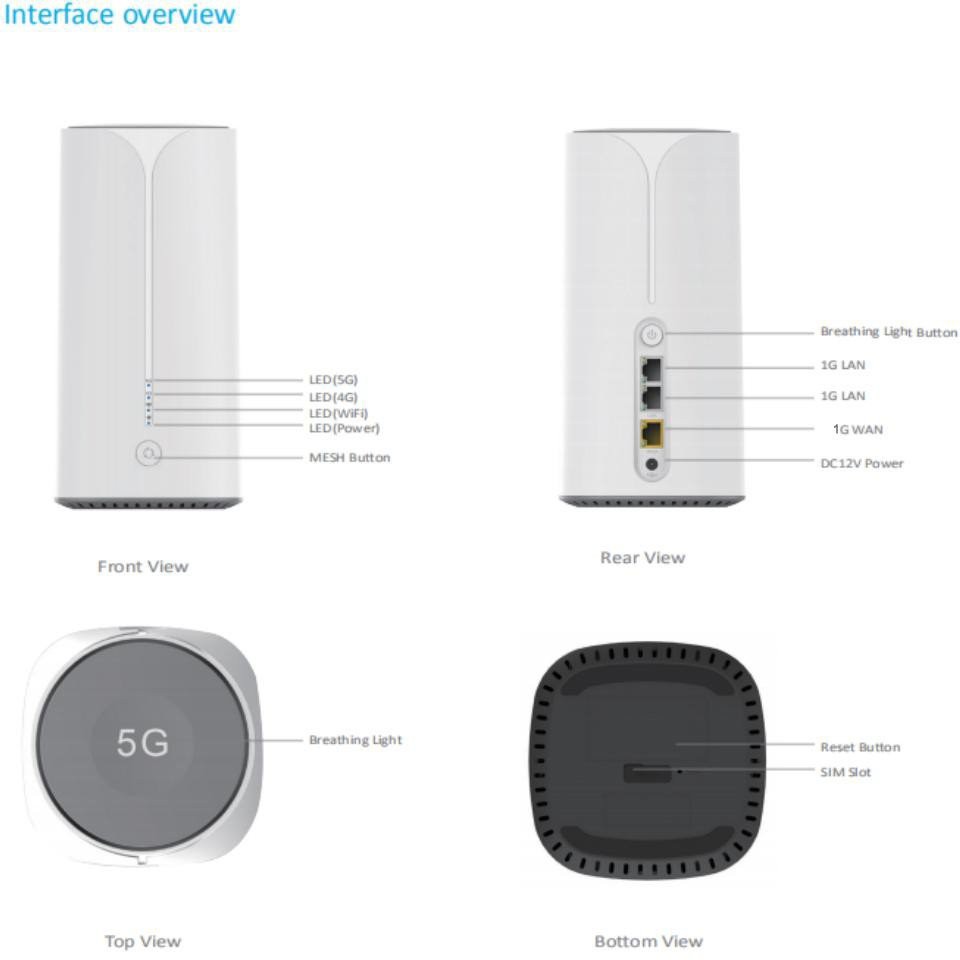

Entèfas | 2 * 10/100M/1000 LAN 1 * 10/100M/1000 WAN 1 * 12V 2A DC pouvwa Antre 1 bouton Reset 1 Bouton limyè pou respire 1 emplacement kat SIM 1 bouton rezo MESH |
Ekstansyon rezo | MESH |
Reyajiste | Reyajiste （Lonje peze 10 segonn pou retabli paramèt faktori yo） |
MESH | Rezo: laprès kout (limyè rezo ble k ap klere) |
Endikatè ki ap dirije | Pouvwa, limyè pou respire, siyal 4G, siyal 5G, siyal fil |
Konsomasyon pouvwa | ＜24W |
Anviwònman | Tanperati Fonksyònman: -20 degre - plis 50 degre Tanperati Depo: -40 degre - plis 70 degre Imidite: 5％-95％（San kondansasyon） |
Pwa | 1.35KG (Gen ladann akseswa bwat koulè) |
Fonksyon lojisyèl | |
IPV4 | Sipò |
IPV6 | Sipò |
Smart QOS | Sipò |
Kontwòl Paran | Sipò |
UPNP | Sipò |
VPN | Sipòte kliyan VPN L2TP Sipòte PPTP VPN kliyan |
APN | Sipò |
DDNS | Sipò |
DMZ | Sipò |
Kat kat pò | Sipò |
MESH | Sipòte MESH prive |
APP | Sipò |
TR069 | Sipò |
WiFi chifreman | Louvri WEP WPA2-PSK WPA3-SAE WPA/WPA2-PSK WPA2-PSK/WPA3-SAE |
WiFi Band Agregasyon | Sipò |
Lòt | 5G koneksyon enfòmasyon ekspozisyon Manyèl frekans fèmen Estatistik trafik |
3koneksyon rezo dyagram
1, Aksè sou entènèt la atravè yon rezo mobil (5G/LTE)

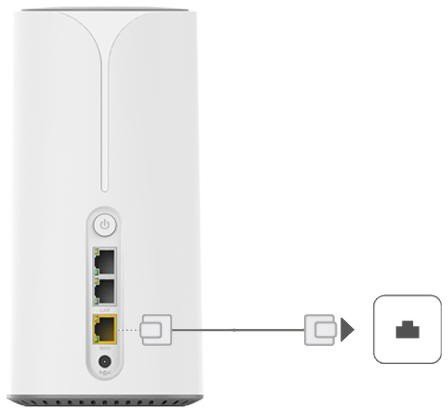

2, Aksè sou entènèt la atravè yon rezo Ethernet
Ki sa ki nan pake a?
• Yon (1) routeur 5G CPE (M01K21)
• Yon (1) 1m Cat6 Ethernet kab
• Yon (1) adaptè pouvwa
• Gid Quick Start
*: sou devlopman / an pwogrè.
Maksimòm ranje siyal san fil sòti nan espesifikasyon IEEE estanda 802.11. Debi done aktyèl yo ak done sou distans yo pral varye. Kondisyon rezo yo ak faktè anviwònman yo, ki gen ladan volim trafik rezo a, materyèl konstriksyon ak konstriksyon, ak anlè rezo a, rezilta nan pi ba pousantaj aktyèl done debi ak kouvèti san fil.
